We provide 2 types of remote video monitoring system:

Low cost telephone line video monitoring system. It supports telephone line connection only. [Click here for more details]

Professional version of video monitoring system. It supports both Internet and telephone connection. It also allows multiple viewers along the network or Internet. [Click here for more details]



Low cost phone line video monitoring system.

A Typical System Consists:
  • Transmission unit
  • Reception software which is running on a personal computer
  • Modems X 2
  • Closed circuit TV cameras (max. 16 cameras)
  • PC (requirement: Pentium 75 or higher ; 95, 98 or NT ; 16MB for single site ; 5MB hard disk space ; hi-color or true color display)
  • Alarm Sensor (optional)
A typical system of low cost phone line video monitoring system

Users can choose different transmission units and reception software to configure their remote monitoring systems. For users requiring higher performance, the professional version of video monitoring system is recommended.

Performance & System Features
  • Fast digital image transmission (up to 1 frame per second at 33.6 kbps)
  • Programmable digital video recording
  • Fast retrieval of recorded video using location and time parameters
  • Password protection
  • Auto-dial up upon alarm events
  • Alarm triggered video recording
  • Easy installation and configuration
  • Windows based user interface
  • Remote camera control
Back to the TOP of this page



Professional version of video monitoring system.

A Typical System Consists:
  • Transmission unit
  • Reception software which is running on a personal computer
  • Modems X 2
  • Closed circuit TV cameras (max. 16 cameras)
  • PC (requirement: Pentium 75 or higher ; 95, 98 or NT ; 16MB for single site ; 5MB hard disk space ; hi-color or true color display)
  • Video Server (requirement: Pentium 75 or higher ; 95, 98 or NT ; 16MB for single site ; 5MB hard disk space ; hi-color or true color display)
  • Reception software running in a personal computer
  • Need to connect to a local ISP (if internet connection is required)
  • Alarm Sensor (optional)

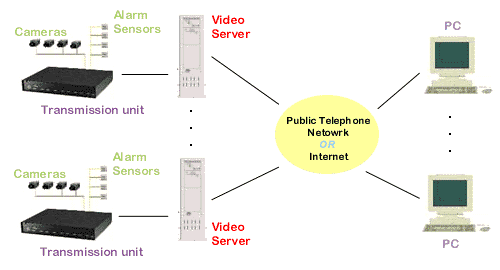

A typical system of professional version of video monitoring system

This version also supports other types of connection like ISDN, cellular, intranet or computer networks. If you have any problem on the connection, please contact us for more details.

Performance & System Features
  • Fast digital image transmission (up to 10 frame per second at 33.6 kbps)
  • Flexible connections: PSTN, ISDN, GSM, LAN, Intranet & Internet
  • Multi-site video monitoring: connection to 4 sites simultaneously with max. 16 cameras per site
  • Programmable digital video recording
  • Fast retrieval of recorded video using location and time parameters
  • Passwords for multiple user authorization
  • Auto-dial up upon alarm events
  • Alarm triggered video recording
  • Easy installation and configuration
  • Windows based user interface
  • Remote camera control
Back to the TOP of this page
